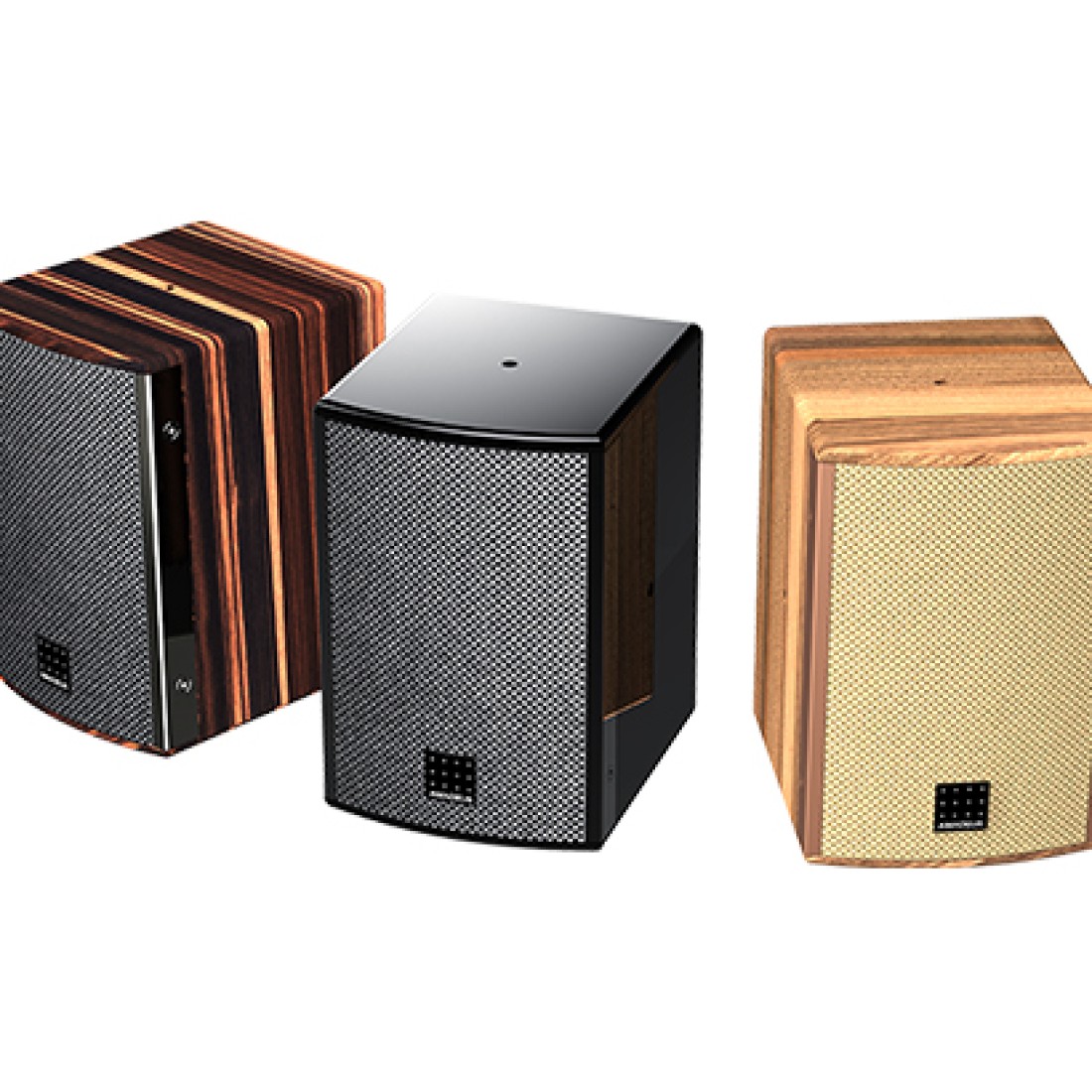

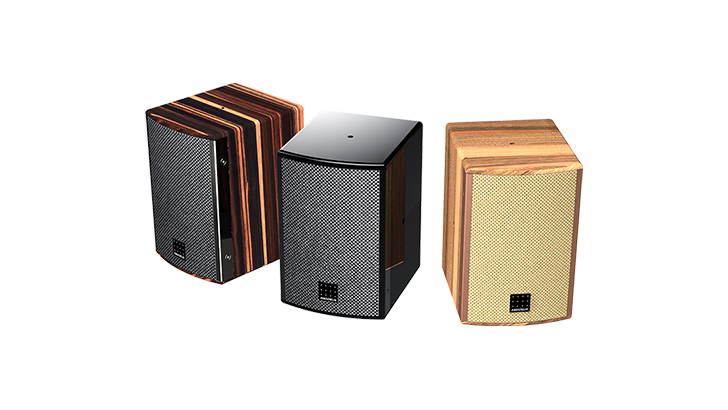

PMX 4
Артикул: -
Цена: 0 KZT
ТЕХНИЧЕСКИЕ ДАННЫЕ
ACOUSTICAL SPECIFICATIONS
|
Operating frequency range |
120 Hz - 22 000 Hz |
| Sensitivity | 90 dB |
| Maximum SPL | 114 dB |
| Vertical coverage | 100° |
| Horizontal coverage | 100° |
TECHNICAL SPECIFICATIONS
| Nominal impedance | 8 Ω |
| AES power handling | 100 W |
| Program power handling | 200 W |
| Peak power handling | 400 W |
| Transducer (LMF) | 1 x 4'' (100 mm) |
| Transducer (HF) | 1 x 0.8'' (20 mm) |
| Enclosure type | Bass-reflex |
| Speaker type | Coaxial |
| Crossover type | Passive |
| Crossover frequency | 3 500 Hz |
| Crossover slopes | HPF 6 dB/Octave, LPF 6 dB/Octave |
PHYSICAL SPECIFICATIONS
| Height | 188 mm |
| Width | 125 mm |
| Depth | 150 mm |
| Connectors | 2 speakON NL4 |
| Weight | 2,2 kg |
| Rigging | 6 inserts for optional accessories |
| Standard color codes for cabinet | RAL 9005, RAL 9010, RAL 1013, RAL 7040, RAL 7030, RAL 5011 |
| Standard color codes for Airtex acoustical fabric | RAL 9005, RAL 9006, RAL 9010, RAL 1035, RAL 1036, RAL 5011 |
